氣缸類型

Cylinder type

GT系列、AT系列 GT series, AT series

閥門類型

Valve type

中線式軟密封蝶閥

Middle line soft seal butterfly valve

作用方式

Work way

雙作用活塞式、單作用彈簧復位式

Double acting piston type, single acting spring return type

閥門型號

Valve type

D671X/F

氣源壓力

Air pressure

4~8Bar

連接方式

Connection mode

對夾式 Wafer type

工作介質

Working medium

干燥、清潔不含腐蝕氣體

Dry and clean without corrosive gas

公稱通徑

Nominal diameter

DN40~300mm

工作溫度Working temperature

常溫型：-20℃~80℃(丁腈橡膠O型圈) Room

temperature type: ~ 20 ℃ to 80 ℃ (nitrile rubber O-rings)

公稱壓力

Nominal pressure

0.6~1.6MPa

高溫型：-20℃~160℃(氟橡膠O型圈) High temperature

type: - 20 ℃ to 160℃ (fluorine rubber O-rings)

閥體材質

Body material

RPP、PVDF、CPVC、UPVC等 Etc

動作范圍

Range of motion

0~90°±5°

蝶板材質

Butterfly material

RPP、PVDF、CPVC、UPVC等 Etc

接口螺紋

Interface thread

GT52~GT83 G1/8"

閥座密封

Seat tightness

EPDM、FPM及氟橡膠等 And fluorine rubber, etc

GT110~GT210 AT52~AT210 G1/4"

適用溫度

Suitable temperature

EPDM≤80℃氟橡膠 Fluorine rubber≤120℃

閥位信號

Valve position signal

定位器：4~20mA/回信器：全開全關信號

Locator: 4~20mA/reply: full ON/OFF signal

適用介質

Applicable medium

水、蒸汽及油品等腐蝕性和非腐蝕性介質

Water, steam, oil corrosion and the corrosion medium, etc

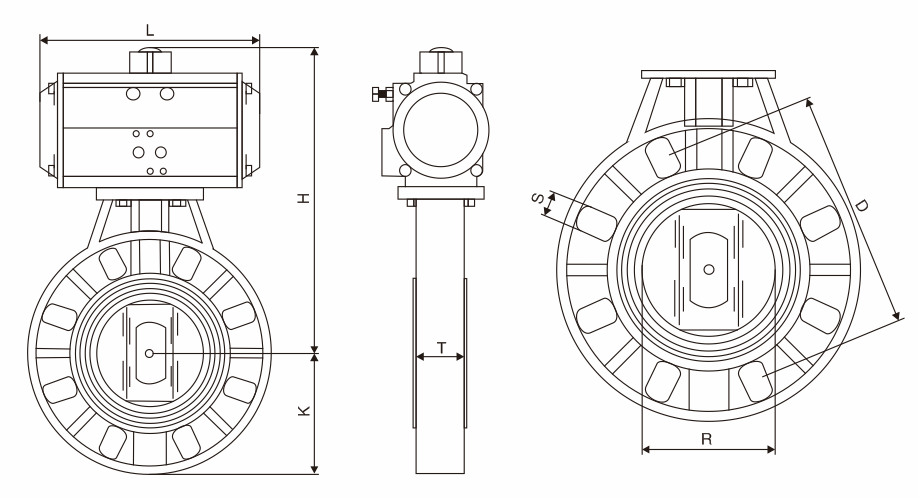

L

T

H

K

R

S

D

40

147

42

220

79.5

45.3

4*Φ18

110

AT52

50

147

42

235

82.5

56.5

4*Φ18

125

AT52

65

168

44.7

245

92.5

69.5

4*Φ18

145

AT63

80

182

45

260

100

79.5

8*Φ18

160

AT75

100

204

51.2

280

114.5

102.5

8*Φ18

180

AT83

125

238

54.4

322

128.5

130

8*Φ18

210

AT92

150

268

55

374

142.5

152

8*Φ18

240

AT105

200

301

58.8

428

171.5

203

8*Φ23

295

AT130

250

390

65.7

482

205.5

255

8*Φ23

350

AT140

300

458

76

574

245

309.5

12*Φ23

400

AT160
